starpilot

A tool to suggest GitHub repos from your users stars

Introduction

• Hi, I’m Dave, and thanks for coming to see me talk about a recent sideproject.

Goals for the talk

• Share an AI project I’ve been working on
• Share some of the design decisions I made to build it
• Share some of the experience I had building it
• Share some of the code I wrote to build it

Before we start I’d like to understand more about all of you, as we have a mixture of folks potentially from AIWales and from PyData Cardiff.

Level Set

🙌 🙌🏻 🙌🏼 🙌🏽 🙌🏾 🙌🏿 🙌🏿

• Retrieval Augmented Generation
• Vector Embedding
• Vector Store
• Vector Similarity

• I’m going to assume you know the meaning of terms like ‘AI’, ‘LLM’, ‘GPT’
• If you don’t, hello, welcome, you are in a great place to learn, but I won’t go over them now. Feel free to make a neighbor into friend and ask them, or get Joe to explain it in his session.
• Can you define these terms?
• I’m not going to put anyone on the spot here, but I’d love to have people raise their hands if they feel they can define these terms
• This will help me understand the level of knowledge in the room and hopefully tune the rest of the talk

Level Set

• Retrieval Augmented Generation
  • Using a language model supported by a vector store
• Vector Embedding
  • Converting text into a list of numbers to represent semantic meaning
• Vector Store
  • Database optimized for storing embedding vectors
• Vector Similarity
  • Quantifying the similarity between embedding vectors

• So here are the definitions of the terms, keep the hands up if you got most of them right
• If you knew these terms already, great! This talk is largely about applying these concepts in code.
• If you didn’t, that’s also great, because you’re in the right place to learn about them.

Level Set

🙌 🙌🏻 🙌🏼 🙌🏽 🙌🏾 🙌🏿 🙌🏿

Who is comfortable reading python?

The Project

Goals for an AI project

• As a Data Scientist
• I want to build something novel with AI
• So that I can learn and experiment with the technology
• And maybe make something useful for other people

• Apply Retrieval Augmented Generation to a goal I have (and maybe other people)
• Understand how LangChain (and friends) works through building something novel
• Experiment in a way that leans into what LLMs + AI are good at
  • Semantic meaning

The Project is starpilot

A tool to suggest GitHub repos from your users stars based on semantic similarity

• The project is called starpilot
• It’s a tool that suggests GitHub repos based on semantic similarity
• The idea is that you can give it a query, and it will return the most semantically similar repos to that query that your GitHub user has starred

Demo 1

• So here is a smash cut to the most basic demo.
• I call starpilot to execute the ‘shoot’ command with the query “machine learning”
• Starpilot returns 10 repos that are all semantically similar to the query, and all exist, no hallucinations here
• Most interestingly the repo DeepLearningExamples is returned, which is depending on your level of pedanticness, not a ‘machine learning’ repo, but a ‘deep learning’ repo
• However, DeepLearningExamples never states the term machine learning. It’s a deep learning, and that is semantically similar to machine learning. This is exactly the kind of result I was hoping for. The tool is looking at the search intention not the search terms

Why is ‘semantic similarity’ important?

• Keyword search tests “how close a string is to another string”
  • Exact Match: cool cats != chill felines
  • Partial Match: cool cat partially fits cooler cats
• Semantic search tests “how similar in meaning is the phrase to another phrase”
  • cool cats is equivalent in meaning to chill felines, also groovy kittys, suave main coon and sphinx with style

• I think applying AI, LLM and RAG to a problem like might be a good fit
• This is because the problem is about semantic similarity
• I’m looking for a library that does “DataFrames”. Will I also be interested in libraries that do “Data Tables”? Probably.
• I’m looking for a ‘Front end’ framework, will I also be interested in ‘UI’ frameworks? Probably.

Why is this data suitable for ‘semantic’ but not ‘keyword’ search?

• GitHub stars are public and common across languages/stacks/specialisms
• GitHub repos are text rich data
• GitHub repos are a ‘weak standard’
  • Topics are free text
  • Descriptions are free text

• Without access to suitable data, this project can’t get off the ground, but luckily GitHub is a treasure trove of easily acciessble data for this use case
• The data is text rich, and the text is ‘rich’ in meaning
• However, the data is also ‘varied’ in structure, quality and context
• Repos vary subjectively by community, project requirements, and developer style
• There is no ‘repo police’ saying a repo must have a certain structure, or a certain set of tags
• This is where the AI comes in

An Intuitive Example

Polars vs Pandas

• data-analysis
• flexible
• alignment
• python
• data-science

• dataframe-library
• dataframe
• dataframes
• arrow
• python
• out-of-core

• To illustrate this point, let’s look at a few tags from GitHub
• This is the topic list for the Polars and Pandas repos
• They are functionally extremely close. They are both Python libraries for data manipulation
• While there may be some subjective views about when to use which they both solve practically identical problems and fit practically identical use-cases
• If we were to search for ‘DataFrames for Python’ we would want to return both of these repos
• However, keyword search would only return one of them because none of the topics are shared

Polars vs Pandas

Flexible and powerful data analysis / manipulation library for Python, providing labeled data structures similar to R data.frame objects, statistical functions, and much more

Dataframes powered by a multithreaded, vectorized query engine, written in Rust

• Here are the descriptions for the Polars and Pandas repos
• Again very similar, but keyword search would not return both of these repos
• I’d suggest unless you knew already what the difference between these two libraries was, you’d be hard pressed to know which one has been which in the last 2 slides

Polars vs Pandas

• If you managed to guess correctly, congratulations, you’ve won a smug sense of self-satisfaction
• Even if you didn’t, that’s fine, because the point is that these two libraries are very similar in meaning, but very different in the way they are described
• Also, I didn’t set this up, but I lobe the way that the panda was generated with 2 laptops for some reason, and the polar bear is sort of almost a pandas
• It’s like the polar bear is all “Look, I’m Pandas too!” and the Panda is furiously dual wielding laptops to attempt to prove it’s multi-threaded

Embedding Example

• “polars module”
• “pandas package”
• “panda breeding”
• “polar environment”

To create an embedding, the source data is converted into a list of numbers through a process called ‘embedding’ The numbers represent the semantic meaning of the text You can imagine each number as a ‘relevance score’ for a given topic I’m deliberately simplifying this, but it’s a good enough mental model for now Suppose we have the following 4 pieces of text we want to embed separately

Embedding Example

flowchart LR

subgraph strings
pm("polars module")
pp("pandas package")
pb("panda breeding")
pe("polar environment")
end

subgraph embedder
embed([function])

pm --> embed
pp --> embed
pb --> embed
pe --> embed
end

subgraph vector
pmv("0.24, 0.12")
ppv("0.91, 0.83")
pbv("0.83, 0.12")
pev("0.91, 0.24")

embed --> pmv
embed --> ppv
embed --> pbv
embed --> pev
end

The embedding process takes the text and converts it into a list of numbers In our silly example, the numbers are 2D, but in reality, they are billions of dimensions

Embedding Example

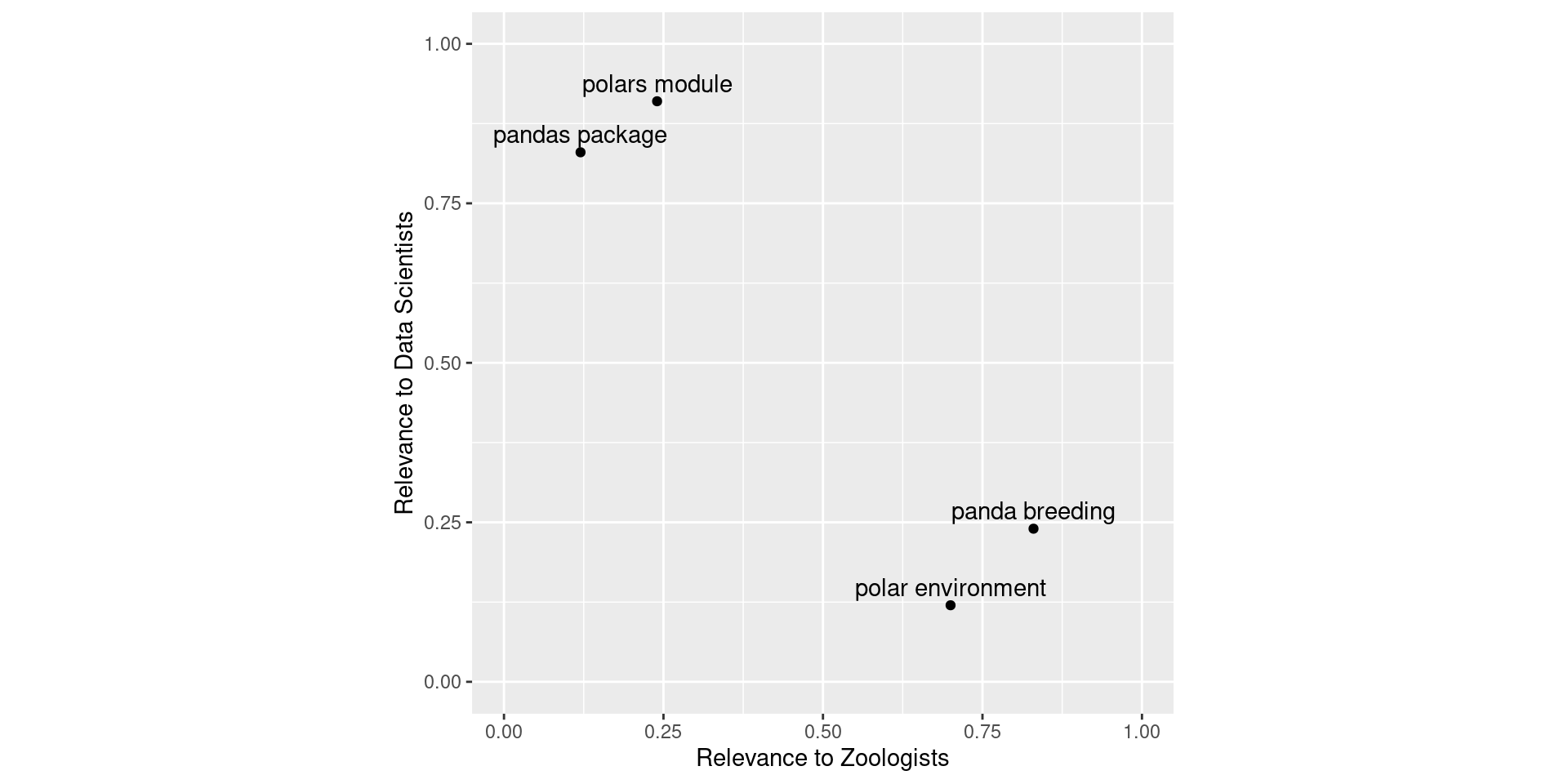

Here’s a plot of the 4 pieces of text in 2D space - The x-axis represents the relevance to zoologists - The y-axis represents the relevance to data scientists - The points are the 4 pieces of text converted into an embedding

Embedding Example

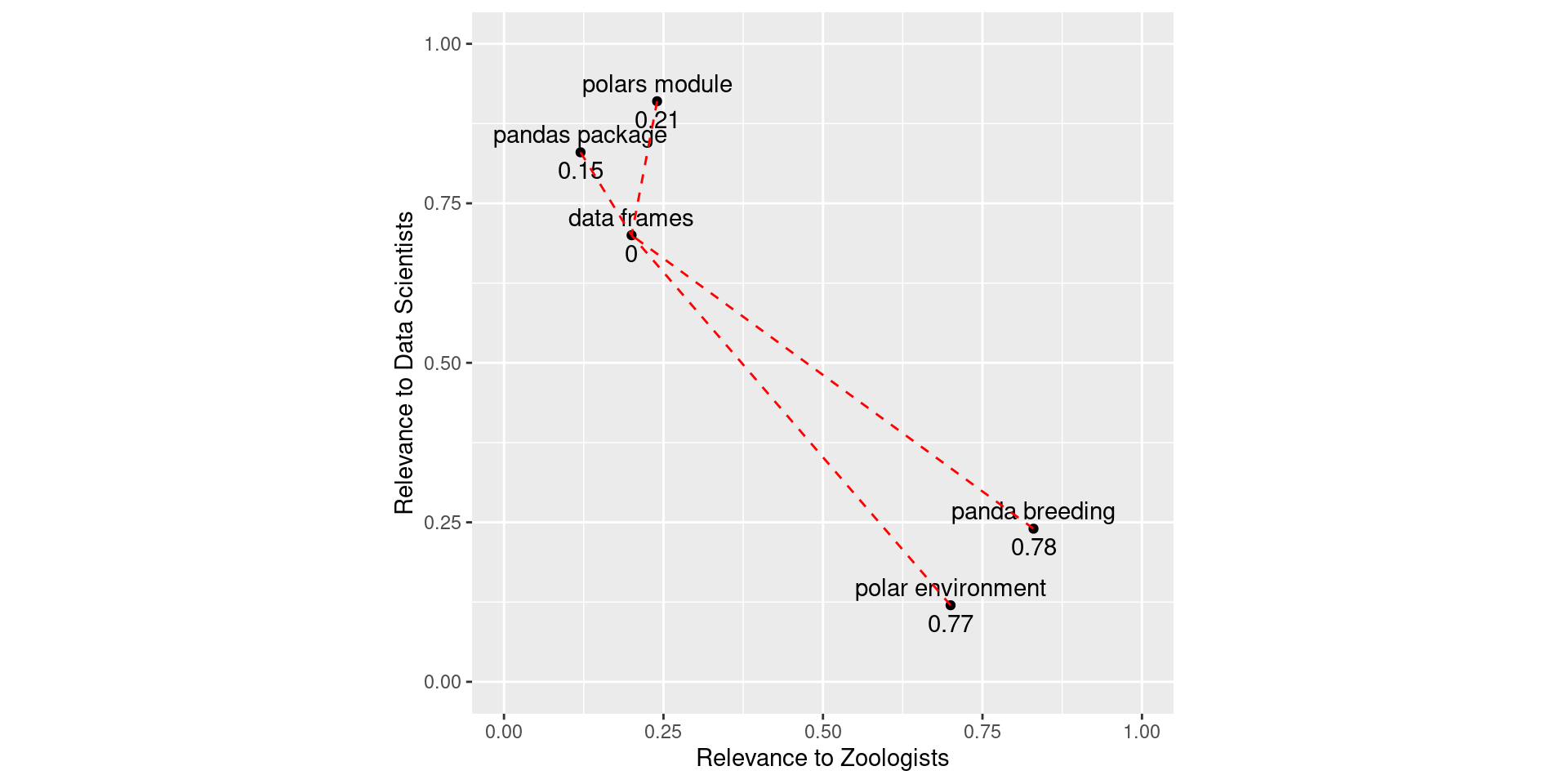

So now lets invent a query to put in the embedding space: “data frames” When we embed this query, it will be placed in the embedding space From this known point we then compute the distance to the other points

First Experiment

Solution Requirements

• A method to extract the data from GitHub
• A connection to an llm
• A framework to parse 100s (1000s?) of ‘similarly’ structured data
• A data store for processed data
• An interactive interface for the developer to access the data

Solution Architecture

• So to build this I need a few tools, libraries and datasources
• GitHub User Stars
  • Rest API then GraphQL API
    • I’ll mention more about the change between those in a moment
  • JSON files
• Langchain
  • LLM Rest API Access
  • Document parsing tools
  • Vector store prompt query framework
• Chroma
  • On disk vector store
• Typer
  • ‘FastAPI’ style CLI framework

Similarity Search

flowchart LR

subgraph 0 Resources
    GH([GitHub Repo])
    DB[(Chroma)]
    LLM([LLM])
end

subgraph 1 ETL
    raw(JSON)
    docs_in(Docs)
    vec(Embedding)

    GH--->raw
    raw-->docs_in
    docs_in-->LLM
    LLM-->vec
    vec-->DB
end

subgraph 2 Execution
    cli([cli])
    q(query)
    LLM([LLM])
    q_vec(Query Vector)
    docs_out(Document)
    a(suggestions)

    cli-->q
    q -->LLM
    LLM -->q_vec
    q_vec -->DB
    DB-->docs_out
    docs_out-->a
end

Outcome

• IT’S ALIVE
  • Data gets read
  • Read data gets embedded
  • Embedded data gets stored
  • Embedded data gets queried

Outcome

• IT STINKS
  • Reading data is punishingly long
    • 200 stars in 30 minutes
  • Querying data is basic
    • Semantic search works, but is broad
    • ‘DataFrames for Python’ returns Pandas, and Tidyverse in R, and DataTables in JavaScript

Refinement

Refined Version

flowchart LR

LLM([LLM])
GH([GitHub Repo])
raw(raw_GH/*.json)
prepped(enhanced_GH/*.json)
style prepped fill:red
docs_in(Documents)
vec_doc(Vector Document)
DB[(Chroma)]
self_query(Self Query)
vec_q(Vector Embedding)
db_filter(Filter Value)
cli([cli])
q(query)
docs_out(Document)
a(suggestions)

subgraph 0 Resources
    GH
    DB
    LLM
end

subgraph 1 ETL
    GH--->raw
    raw-->prepped
    prepped-->docs_in
    docs_in-->LLM
    LLM-->vec_doc
    vec_doc-->DB
end

subgraph 2 Execution
    LLM-->self_query
    self_query-->db_filter
    style self_query fill:red
    self_query-->vec_q
    db_filter-->DB
    style db_filter fill:red
    vec_q --> DB
    cli-->q
    q -->LLM
    DB-->docs_out
    docs_out-->a
end

What this gets us

• Faster Data reads from GitHub
  • 20x
• Enhanced data preprocessing
  • Tags, Stars, Primary Language
• Selective data load
  • ‘Popular’ repos
• Self Querying
  • Language specific results

• Faster data read with GraphQL
  • Reduces network overhead of a per repo call
    • Returns are now paginated json files
  • 20x speed up
• Enhanced data preprocessing
  • Extracts more data from the repo
    • Repo tags
    • Stars
    • Primary Language
  • More selective on data load
    • Only load ‘popular’ repos
    • Only load ‘relevant’ repos
• Enhanced data preprocessing + Self Querying
  • Enables more nuanced queries like “Dataframes for Python” -> “Pandas”
• So lets look at some key parts of the code now

Example Data

Example JSON in

{
    "name": "langchain",
    "nameWithOwner": "langchain-ai/langchain",
    "url": "https://github.com/langchain-ai/langchain",
    "homepageUrl": "https://python.langchain.com",
    "description": "\ud83e\udd9c\ud83d\udd17 Build context-aware reasoning applications",
    "stargazerCount": 77908,
    "primaryLanguage": "Python",
    "languages": [
        "Python",
        "Makefile",
        "HTML",
        "Dockerfile",
        "TeX",
        "JavaScript",
        "Shell",
        "XSLT",
        "Jupyter Notebook",
        "MDX"
    ],
    "owner": "langchain-ai",
    "content": "langchain \ud83e\udd9c\ud83d\udd17 Build context-aware reasoning applications Python"
}

• This is an example of the json file that is written to disk
• It contains the metadata and content of a repo
• Content is created by starpilot by appending the description and name fields
• At this stage I have one json per starred repo, and these now need to be processed and loaded into the vector store
• To do this there is a prepare_documents function in Starpilot

The prepare_documents function

prepare_documents

• The prepare_documents function is responsible for reading in the json files and creating Document objects

def prepare_documents(
    repo_contents_dir: str = "./repo_content",
) -> List[Document]:
    """
    Prepare the documents for ingestion into the vectorstore
    """
    ...
    return documents

• Here’s the function signature
• It takes a directory of json files as input
• It returns a list of Document objects
• A Document is a class defined in the LangChain library
• The Document object contains the content and metadata for a given repo

prepare_documents

Get the file paths for each json file for each repo

def prepare_documents(
    repo_contents_dir: str = "./repo_content",
) -> List[Document]:
    """
    Prepare the documents for ingestion into the vectorstore
    """

    file_paths = []
    for file in os.listdir(repo_contents_dir):
        file_paths.append(os.path.join(repo_contents_dir, file))

    ...

    return documents

• prepare_documents first creates a list of file paths to the json files
• Each item in this list is the direct path to a specific json file, each of which is the content of a specific repo read through GraphQL

prepare_documents

Load the Document objects from the json files

def prepare_documents(
    repo_contents_dir: str = "./repo_content",
) -> List[Document]:
    ...
    documents = []
    for file_path in track(file_paths, description="Loading documents..."):
        logger.debug("Loading document", file=file_path)
        loader = JSONLoader(
            file_path,
            jq_schema=".",
            content_key="content",
            metadata_func=_metadata_func,
            text_content=False,
        )
        if (loaded_document := loader.load())[0].page_content != "":
            documents.extend(loaded_document)
    ...
    return documents

• The function reads in the json files written per repo into memory
• The JSONLoader class is used to load the json files
• The Document objects are then returned as a list
• jq_schema defines the “root” of the json file
• content_key defines the key in the json file that contains the content
• metadata_func is a function that extracts metadata from the json file
• Finally if the Document object has content it is added to the list of Document objects

prepare_documents

The metadata_func function is used to extract metadata from the json file

def prepare_documents(
    repo_contents_dir: str = "./repo_content",
) -> List[Document]:
    ...
    documents = []
    for file_path in track(file_paths, description="Loading documents..."):
        logger.debug("Loading document", file=file_path)
        loader = JSONLoader(
            file_path,
            jq_schema=".",
            content_key="content",
            metadata_func=_metadata_func,
            text_content=False,
        )
        if (loaded_document := loader.load())[0].page_content != "":
            documents.extend(loaded_document)
    ...
    return documents

• However, what’s the _metadata_func function?

prepare_documents

The _metadata_func function is used to extract metadata from the json file

def prepare_documents(
    repo_contents_dir: str = "./repo_content",
) -> List[Document]:

    def _metadata_func(record: dict, metadata: dict) -> dict:
        metadata["url"] = record.get("url")
        metadata["name"] = record.get("name")
        metadata["stargazerCount"] = record["stargazerCount"]
        if (primary_language := record.get("primaryLanguage")) is not None:
            metadata["primaryLanguage"] = primary_language
        if (description := record.get("description")) is not None:
            metadata["description"] = description
        if (topics := record.get("topics")) is not None:
            metadata["topics"] = " ".join(topics)
        if (languages := record.get("languages")) is not None:
            metadata["languages"] = " ".join(languages)

        return metadata

    ...

    return documents

• _metadata_func is a function that extracts metadata for the repo and processes it to be included as the metadata of the Document object
• It extracts the url, name, stargazerCount, primaryLanguage, description, topics and languages fields from the json file as long as they exist
• The items that are extracted are then added to the metadata dictionary
• The metadata dictionary is then returned as part of the Document object

Using the prepare_documents function

prepare_documents is used to load the Document objects into `Chroma

from langchain_community.vectorstores import Chroma
from langchain_openai.embeddings import OpenAIEmbeddings

Chroma.from_documents(
    documents=utils.prepare_documents(),
    embedding=OpenAIEmbeddings(model="text-embedding-3-large"),
    persist_directory="./vectorstore-chroma",
)

• To use this list of Documents , we need to pass it to the Chroma class using the from_documents method.

Using the prepare_documents function

Chroma.from_documents also needs an embedding object and a persist_directory

from langchain_community.vectorstores import Chroma
from langchain_openai.embeddings import OpenAIEmbeddings

Chroma.from_documents(
    documents=utils.prepare_documents(),
    embedding=OpenAIEmbeddings(model="text-embedding-3-large"),
    persist_directory="./vectorstore-chroma",
)

• The Chroma class is a class that is part of the LangChain library
• We also need to pass an embedding object to the Chroma class
• On call, this method will create a vector store from the Document objects and then for each Document object, it will embed the content of the Document object using the OpenAIEmbeddings class and store the embeddings in the vector store
• The metadata of the Document object is also stored in the vector store, but not embedded. We’ll see why this is important later

Accessing the Vector Store

Semantic similarity search

Semantic search accepts a query string and returns the most relevant Document objects

def shoot(
    vectorstore_path: str,
    k: int,
    method: SearchMethods = SearchMethods.similarity,
    query: str,
) -> List[Document]:
    """
    Create a retriever from a vectorstore and query it
    """

• This is the function signature for the create_retriever function in starpilot

Semantic similarity search

Create a retriever object from the vector store and query it

def shoot(
        vectorstore_path: str,
    k: int,
    method: SearchMethods = SearchMethods.similarity,
    query: str,
) -> List[Document]:
    """
    Create a retriever from a vectorstore and query it
    """
    retriever = Chroma(
        persist_directory=vectorstore_path,
        embedding_function=OpenAIEmbeddings(
            model="text-embedding-3-large"
        ),
    ).as_retriever(
        search_type=method,
        search_kwargs={
            "k": k,
        },
    )
    return retriever.get_relevant_documents(query)

• This is the shoot function in starpilot, which is used to perform a semantic search on the vector store
• First, we need to create a retriever object from the vector store Class
• We need to specify the embedding function that was used to embed the content of the Document object
• We also need to specify the search method that we want to use, which is effectively the algorithm to compute the similarity between the query vector and the vectors in the vector store
• Finally, we need to pass the query string to the get_relevant_documents method of the retriever object, and it will return the most relevant Document objects

Self Querying

Self Querying

Self-querying is a way to pre-filter the results of a semantic search by metadata fields

def astrologer(
    query: str,
    k: Optional[int] = typer.Option(
        4, help="Number of results to fetch from the vectorstore"
    ),
) -> List[Document]:
    """
    A self-query of the vectorstore that allows the user to search for a repo while filtering by attributes

    Example:
    ```
    starpilot astrologer "What can I use to build a web app with Python?"
    starpilot astrologer "Suggest some Rust machine learning crates"
    ```

    """
    metadata_field_info = [
        AttributeInfo(
            name="languages",
            description="the programming languages of a repo. Example: ['python', 'R', 'Rust']",
            type="string",
        ),
        AttributeInfo(
            name="name",
            description="the name of a repository. Example: 'langchain'",
            type="string",
        ),
        AttributeInfo(
            name="topics",
            description="the topics a repository is tagged with. Example: ['data-science', 'machine-learning', 'web-development', 'tidyverse']",
            type="string",
        ),
        AttributeInfo(
            name="url",
            description="the url of a repository on GitHub",
            type="string",
        ),
        AttributeInfo(
            name="stargazerCount",
            description="the number of stars a repository has on GitHub",
            type="number",
        ),
    ]

    document_content_description = "content describing a repository on GitHub"

    prompt = get_query_constructor_prompt(
        document_content_description,
        metadata_field_info,
        examples=[
            (
                "Python machine learning repos",
                {
                    "query": "machine learning",
                    "filter": 'eq("primaryLanguage", "Python")',
                },
            ),
            (
                "Rust Dataframe crates",
                {"query": "data frame", "filter": 'eq("primaryLanguage", "Rust")'},
            ),
            (
                "What R packages do time series analysis",
                {"query": "time series", "filter": 'eq("primaryLanguage", "R")'},
            ),
            (
                "data frame packages with 100 stars or more",
                {
                    "query": "data frame",
                    "filter": 'gte("stargazerCount", 100)',
                },
            ),
        ],
        allowed_comparators=[
            Comparator.EQ,
            Comparator.NE,
            Comparator.GT,
            Comparator.GTE,
            Comparator.LT,
            Comparator.LTE,
        ],
    )

    llm = ChatOpenAI(model="gpt-3.5-turbo",)

    output_parser = StructuredQueryOutputParser.from_components()

    query_constructor = prompt | llm | output_parser

    vectorstore = Chroma(
        persist_directory="./vectorstore-chroma",
        embedding_function=OpenAIEmbeddings(model="text-embedding-3-large"),
    )

    retriever = SelfQueryRetriever(
        query_constructor=query_constructor,
        vectorstore=vectorstore,
        structured_query_translator=ChromaTranslator(),
        search_kwargs={"k": k},
    )

    results = retriever.invoke(query)

    return results

• So this is the astrologer function in starpilot
• It’s distinct from the shoot function in that it allows the user to filter the results by metadata fields
• To do this we use more LangChain classes to orchestrate the query

Self Querying

Create a list of AttributeInfo objects that describe the metadata fields

def astrologer(
    query: str,
    k: Optional[int] = typer.Option(
        4, help="Number of results to fetch from the vectorstore"
    ),
) -> List[Document]:
    """
    A self-query of the vectorstore that allows the user to search for a repo while filtering by attributes

    Example:
    ```
    starpilot astrologer "What can I use to build a web app with Python?"
    starpilot astrologer "Suggest some Rust machine learning crates"
    ```

    """
    metadata_field_info = [
        AttributeInfo(
            name="languages",
            description="the programming languages of a repo. Example: ['python', 'R', 'Rust']",
            type="string",
        ),
        AttributeInfo(
            name="name",
            description="the name of a repository. Example: 'langchain'",
            type="string",
        ),
        AttributeInfo(
            name="topics",
            description="the topics a repository is tagged with. Example: ['data-science', 'machine-learning', 'web-development', 'tidyverse']",
            type="string",
        ),
        AttributeInfo(
            name="url",
            description="the url of a repository on GitHub",
            type="string",
        ),
        AttributeInfo(
            name="stargazerCount",
            description="the number of stars a repository has on GitHub",
            type="number",
        ),
    ]

    document_content_description = "content describing a repository on GitHub"

    prompt = get_query_constructor_prompt(
        document_content_description,
        metadata_field_info,
        examples=[
            (
                "Python machine learning repos",
                {
                    "query": "machine learning",
                    "filter": 'eq("primaryLanguage", "Python")',
                },
            ),
            (
                "Rust Dataframe crates",
                {"query": "data frame", "filter": 'eq("primaryLanguage", "Rust")'},
            ),
            (
                "What R packages do time series analysis",
                {"query": "time series", "filter": 'eq("primaryLanguage", "R")'},
            ),
            (
                "data frame packages with 100 stars or more",
                {
                    "query": "data frame",
                    "filter": 'gte("stargazerCount", 100)',
                },
            ),
        ],
        allowed_comparators=[
            Comparator.EQ,
            Comparator.NE,
            Comparator.GT,
            Comparator.GTE,
            Comparator.LT,
            Comparator.LTE,
        ],
    )

    llm = ChatOpenAI(model="gpt-3.5-turbo",)

    output_parser = StructuredQueryOutputParser.from_components()

    query_constructor = prompt | llm | output_parser

    vectorstore = Chroma(
        persist_directory="./vectorstore-chroma",
        embedding_function=OpenAIEmbeddings(model="text-embedding-3-large"),
    )

    retriever = SelfQueryRetriever(
        query_constructor=query_constructor,
        vectorstore=vectorstore,
        structured_query_translator=ChromaTranslator(),
        search_kwargs={"k": k},
    )

    results = retriever.invoke(query)

    return results

• To enable self-querying, we are effectively creating a prompt for an llm
• The prompt is going to receive the users query, then it will destructure the query into the part that is the query and the part that is the filter
• To do this we need to describe those metadata fields from earlier we want to filter by
• LangChain provides AttributeInfo objects to describe the metadata fields
• We provide one for each field and collect them into a list

Self Querying

Construct the query prompt using get query constructor prompt to return a BasePromptTemplate object

def astrologer(
    query: str,
    k: Optional[int] = typer.Option(
        4, help="Number of results to fetch from the vectorstore"
    ),
) -> List[Document]:
    """
    A self-query of the vectorstore that allows the user to search for a repo while filtering by attributes

    Example:
    ```
    starpilot astrologer "What can I use to build a web app with Python?"
    starpilot astrologer "Suggest some Rust machine learning crates"
    ```

    """
    metadata_field_info = [
        AttributeInfo(
            name="languages",
            description="the programming languages of a repo. Example: ['python', 'R', 'Rust']",
            type="string",
        ),
        AttributeInfo(
            name="name",
            description="the name of a repository. Example: 'langchain'",
            type="string",
        ),
        AttributeInfo(
            name="topics",
            description="the topics a repository is tagged with. Example: ['data-science', 'machine-learning', 'web-development', 'tidyverse']",
            type="string",
        ),
        AttributeInfo(
            name="url",
            description="the url of a repository on GitHub",
            type="string",
        ),
        AttributeInfo(
            name="stargazerCount",
            description="the number of stars a repository has on GitHub",
            type="number",
        ),
    ]

    document_content_description = "content describing a repository on GitHub"

    prompt = get_query_constructor_prompt(
        document_content_description,
        metadata_field_info,
        examples=[
            (
                "Python machine learning repos",
                {
                    "query": "machine learning",
                    "filter": 'eq("primaryLanguage", "Python")',
                },
            ),
            (
                "Rust Dataframe crates",
                {"query": "data frame", "filter": 'eq("primaryLanguage", "Rust")'},
            ),
            (
                "What R packages do time series analysis",
                {"query": "time series", "filter": 'eq("primaryLanguage", "R")'},
            ),
            (
                "data frame packages with 100 stars or more",
                {
                    "query": "data frame",
                    "filter": 'gte("stargazerCount", 100)',
                },
            ),
        ],
        allowed_comparators=[
            Comparator.EQ,
            Comparator.NE,
            Comparator.GT,
            Comparator.GTE,
            Comparator.LT,
            Comparator.LTE,
        ],
    )

    llm = ChatOpenAI(model="gpt-3.5-turbo",)

    output_parser = StructuredQueryOutputParser.from_components()

    query_constructor = prompt | llm | output_parser

    vectorstore = Chroma(
        persist_directory="./vectorstore-chroma",
        embedding_function=OpenAIEmbeddings(model="text-embedding-3-large"),
    )

    retriever = SelfQueryRetriever(
        query_constructor=query_constructor,
        vectorstore=vectorstore,
        structured_query_translator=ChromaTranslator(),
        search_kwargs={"k": k},
    )

    results = retriever.invoke(query)

    return results

• As well as the metadata fields, we describe the kind of data we are querying
• We also provide examples of queries and filters in a ‘few-shot’ style prompting format
• The examples should reference the metadata fields we described earlier
• The get_query_constructor_prompt function also accepts a list of allowed comparators, which are specific to the vector store implementation. Chroma will have different comparators to Weaviate for example

Self Querying

Use LangChain Expression Language in a chain to make a QueryConstructor object

def astrologer(
    query: str,
    k: Optional[int] = typer.Option(
        4, help="Number of results to fetch from the vectorstore"
    ),
) -> List[Document]:
    """
    A self-query of the vectorstore that allows the user to search for a repo while filtering by attributes

    Example:
    ```
    starpilot astrologer "What can I use to build a web app with Python?"
    starpilot astrologer "Suggest some Rust machine learning crates"
    ```

    """
    metadata_field_info = [
        AttributeInfo(
            name="languages",
            description="the programming languages of a repo. Example: ['python', 'R', 'Rust']",
            type="string",
        ),
        AttributeInfo(
            name="name",
            description="the name of a repository. Example: 'langchain'",
            type="string",
        ),
        AttributeInfo(
            name="topics",
            description="the topics a repository is tagged with. Example: ['data-science', 'machine-learning', 'web-development', 'tidyverse']",
            type="string",
        ),
        AttributeInfo(
            name="url",
            description="the url of a repository on GitHub",
            type="string",
        ),
        AttributeInfo(
            name="stargazerCount",
            description="the number of stars a repository has on GitHub",
            type="number",
        ),
    ]

    document_content_description = "content describing a repository on GitHub"

    prompt = get_query_constructor_prompt(
        document_content_description,
        metadata_field_info,
        examples=[
            (
                "Python machine learning repos",
                {
                    "query": "machine learning",
                    "filter": 'eq("primaryLanguage", "Python")',
                },
            ),
            (
                "Rust Dataframe crates",
                {"query": "data frame", "filter": 'eq("primaryLanguage", "Rust")'},
            ),
            (
                "What R packages do time series analysis",
                {"query": "time series", "filter": 'eq("primaryLanguage", "R")'},
            ),
            (
                "data frame packages with 100 stars or more",
                {
                    "query": "data frame",
                    "filter": 'gte("stargazerCount", 100)',
                },
            ),
        ],
        allowed_comparators=[
            Comparator.EQ,
            Comparator.NE,
            Comparator.GT,
            Comparator.GTE,
            Comparator.LT,
            Comparator.LTE,
        ],
    )

    llm = ChatOpenAI(model="gpt-3.5-turbo",)

    output_parser = StructuredQueryOutputParser.from_components()

    query_constructor = prompt | llm | output_parser

    vectorstore = Chroma(
        persist_directory="./vectorstore-chroma",
        embedding_function=OpenAIEmbeddings(model="text-embedding-3-large"),
    )

    retriever = SelfQueryRetriever(
        query_constructor=query_constructor,
        vectorstore=vectorstore,
        structured_query_translator=ChromaTranslator(),
        search_kwargs={"k": k},
    )

    results = retriever.invoke(query)

    return results

• So LCEL is a chain of functions that are used to create a QueryConstructor object
• LCEL allows you to pipe functions together to return this execution chain
• Similar to the | operator in bash or .pipe() in pandas

Self Querying

Create a SelfQueryRetriever object from the QueryConstructor object and the Chroma object

def astrologer(
    query: str,
    k: Optional[int] = typer.Option(
        4, help="Number of results to fetch from the vectorstore"
    ),
) -> List[Document]:
    """
    A self-query of the vectorstore that allows the user to search for a repo while filtering by attributes

    Example:
    ```
    starpilot astrologer "What can I use to build a web app with Python?"
    starpilot astrologer "Suggest some Rust machine learning crates"
    ```

    """
    metadata_field_info = [
        AttributeInfo(
            name="languages",
            description="the programming languages of a repo. Example: ['python', 'R', 'Rust']",
            type="string",
        ),
        AttributeInfo(
            name="name",
            description="the name of a repository. Example: 'langchain'",
            type="string",
        ),
        AttributeInfo(
            name="topics",
            description="the topics a repository is tagged with. Example: ['data-science', 'machine-learning', 'web-development', 'tidyverse']",
            type="string",
        ),
        AttributeInfo(
            name="url",
            description="the url of a repository on GitHub",
            type="string",
        ),
        AttributeInfo(
            name="stargazerCount",
            description="the number of stars a repository has on GitHub",
            type="number",
        ),
    ]

    document_content_description = "content describing a repository on GitHub"

    prompt = get_query_constructor_prompt(
        document_content_description,
        metadata_field_info,
        examples=[
            (
                "Python machine learning repos",
                {
                    "query": "machine learning",
                    "filter": 'eq("primaryLanguage", "Python")',
                },
            ),
            (
                "Rust Dataframe crates",
                {"query": "data frame", "filter": 'eq("primaryLanguage", "Rust")'},
            ),
            (
                "What R packages do time series analysis",
                {"query": "time series", "filter": 'eq("primaryLanguage", "R")'},
            ),
            (
                "data frame packages with 100 stars or more",
                {
                    "query": "data frame",
                    "filter": 'gte("stargazerCount", 100)',
                },
            ),
        ],
        allowed_comparators=[
            Comparator.EQ,
            Comparator.NE,
            Comparator.GT,
            Comparator.GTE,
            Comparator.LT,
            Comparator.LTE,
        ],
    )

    llm = ChatOpenAI(model="gpt-3.5-turbo",)

    output_parser = StructuredQueryOutputParser.from_components()

    query_constructor = prompt | llm | output_parser

    vectorstore = Chroma(
        persist_directory="./vectorstore-chroma",
        embedding_function=OpenAIEmbeddings(model="text-embedding-3-large"),
    )

    retriever = SelfQueryRetriever(
        query_constructor=query_constructor,
        vectorstore=vectorstore,
        structured_query_translator=ChromaTranslator(),
        search_kwargs={"k": k},
    )

    results = retriever.invoke(query)

    return results

• Finally we instantiate the SelfQueryRetriever class with the QueryConstructor object we created earlier and the Chroma object like last time
• We then call the invoke method on the SelfQueryRetriever object with the query string
• The invoke method will return the most relevant Document objects after filtering by the metadata fields

Demo astrolger function

Evaluation

What I liked

• Langchain is an “extensively” documented
• Langchain company backed videos and tutorials
• Langchain is a suitable orchestration framework
  • It’s like scikit-learn for LLMs

• Langchain has a huge amount of documentation
• It’s relatively easy to find an example from a notebook that stitches together what you might want
• There are also all the expected class oriented API docs
• The LangChain company has worked really hard to produce lots of examples and tutorials
  • Lance from LangChain has great hands on YT videos
• LangChain fulfills the goal of ‘being the glue between LLM/AI/Vectorstore services’
  • Kind of like scikit-learn for LLMs

What I didn’t like

• Heavily OOP
• Reading the sourcecode is still necessary
  • kwargs are often silently ignored and undocumented
  • ‘Wrappers’ and ‘Connectors’ don’t implement the full API
• Moves fast and breaks things (@v0.1.*)
• Observability is secondary

• heavily OOP
• Must read source code to understand exactly what is and isn’t supported for each class
  • Entirely unclear when kwargs are actually needed, or when they are silently ignored
  • ‘Wrappers’ and ‘Connectors’ don’t implement the full API
• Moves fast and breaks things (@v0.1.*)
  • Documentation is not always up to date and often conflicting
  • Huge structural changes (@v0.2.*) split into langchain and langchain_community
• Observability is secondary
  • LangChain is a company after all
  • They are investing a lot into the langchain ecosystem, and AI/LLM community as a whole
  • They do however still need to make themselves financially sustainable, and they are attempting to do that through monetizing observability for production AI applications though LangSmith
  • I’m mixed about that, in that I think it’s important to make sure they don’t end up as a vast voluntary project that leads to burnout and the framework failing, but at the same time they are taking a very product centric route out of that.
  • I feel that as a result developer logging and observability suffers as a side effect.

Conclusion

Outcome for developers

• starpilotis available now:DaveParr/starpilot
  • Star it, fork it, PR it!
• Langchain is also available now: langchain/langchain
• This talk is also also available now: DaveParr/starpilot-presentation

• All the code I’ve shown today and all the code I didn’t show is all Open Source licensed, so dig in fork it and build a new feature. This is already my most popular repo to date, so I’m excited to see where it goes.
• LangChain is also open source licensed, but much harder to get involved in, and tougher to read
• This talk is also open source, along with speaker notes, so you can go back and remind yourself of the last 30 minutes of your life

Outcome for me

• I have a working prototype
• I have a better understanding of the LangChain library
• I’ve translated this understanding into another, similar project for Magic the Gathering underway

• I have something that works on my machine, that I can use to get more out of my GitHub stars, so that’s nice
• I’ve also been able to get hands on with building something novel, which is something that I enjoy from a learning perspective
• And I’ve started to transfer these and other concepts into a new project on Magic the Gathering, which extends on these ideas with a new dataset, ustilises Hypothetical Document Embeddings, and has a streamlit frontend, which might be a future talk?

Thanks

• Github: daveparr
• Blog: daveparr.info
• Starpilot
  • Starpilot Presentation
